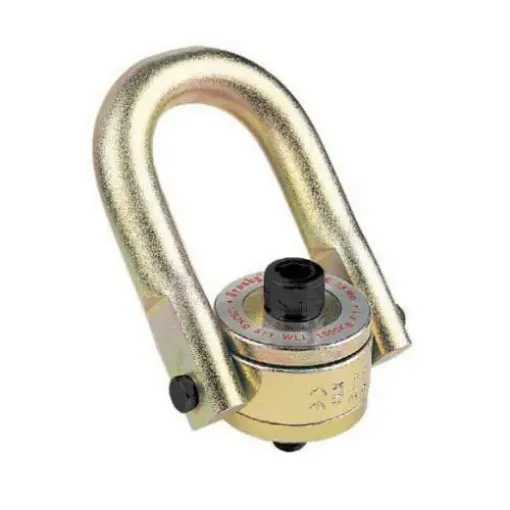

Crosby® 1016635 HR-125M Swivel Hoist Ring, 1900 kg at 5:1 Design Factor Load, 180 deg Pivot, 360 deg Swivel, 17.5 mm Bail, M16x2 Thread

Manufacturer: Crosby Group
Crosby® Swivel Hoist Ring, Series: HR-125M, 1900 kg at 5:1 Design Factor, 180 deg Pivot Angle, 360 deg Swivel, 17.5 mm Bail Dia, M16x2, 81 N-m Installation Torque, 85.1 in W
SKU: CRO 10-16635
Manufacturer part number: 1016635
Availability:
Total Stock Available : 0
Price: Call for pricing
i h h



Have Questions About This Product?



  • Rated at 100% at 90 deg angle
  • 100% Individually proof tested to 2-1/2X the working load limit with certification and statistically magnetic particle inspected
  • Each product has a product identification code (PIC) for material traceability, along with the working load limit and the name Crosby® or "CG" stamped into it
  • Importantly, these hoist rings meet other critical performance requirements including fatigue life, impact properties and material traceability
  • Fatigue rated to 20000 cycles at 1-1/2X the working load limit
  • Individually packaged along with proper application instructions and warning information
  • Bolt is secured with E-clip, threads are grooved, this method allows for easy disassembly and assembly of hoist ring for thorough examination of all components
  • Bolts are individually proof tested
  • Top washer has the following features - the working load limit and recommended torque value are permanently stamped into each washer
  • Washer is color coded for easy identification, silver for metric thread
  • Bolt specification is a grade 12.9 alloy socket head cap screw
  • Designed to be used with ferrous work piece only
