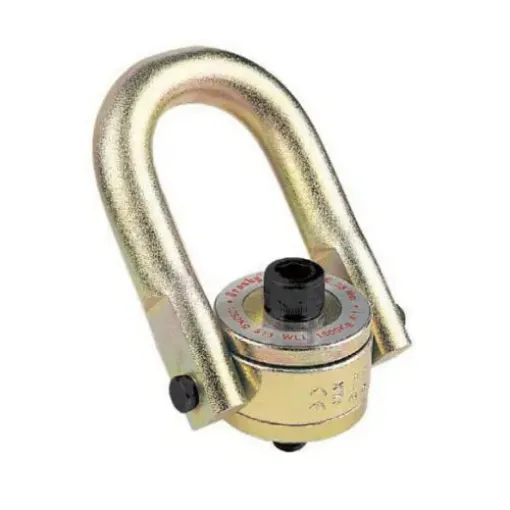

Crosby® 1016679 HR-125M Swivel Hoist Ring, 7000 kg at 5:1 Design Factor Load, 180 deg Pivot, 360 deg Swivel, 30.5 mm Bail, M30x3.5 Thread

Name: Crosby® 1016679 HR-125M Swivel Hoist Ring, 7000 kg at 5:1 Design Factor Load, 180 deg Pivot, 360 deg Swivel, 30.5 mm Bail, M30x3.5 Thread
Brand: Crosby Group
SKU: CRO 10-16679
Availability: OutOfStock

Manufacturer: Crosby Group

Crosby® Swivel Hoist Ring, Series: HR-125M, 7000 kg at 5:1 Design Factor, 180 deg Pivot Angle, 360 deg Swivel, 30.5 mm Bail Dia, M30x3.5, 637 N-m Installation Torque, 157 in W

SKU: CRO 10-16679

Manufacturer part number: 1016679

Pickup

Greenville 0 In Stock
Delivery

0 Out Of Stock

Availability:

Total Stock Available : 0

Price: Call for pricing

Qty:

i h h

Overview

Rated at 100% at 90 deg angle
100% Individually proof tested to 2-1/2X the working load limit with certification and statistically magnetic particle inspected
Each product has a product identification code (PIC) for material traceability, along with the working load limit and the name Crosby® or "CG" stamped into it
Importantly, these hoist rings meet other critical performance requirements including fatigue life, impact properties and material traceability
Fatigue rated to 20000 cycles at 1-1/2X the working load limit
Individually packaged along with proper application instructions and warning information
Bolt is secured with E-clip, threads are grooved, this method allows for easy disassembly and assembly of hoist ring for thorough examination of all components
Bolts are individually proof tested
Top washer has the following features - the working load limit and recommended torque value are permanently stamped into each washer
Washer is color coded for easy identification, silver for metric thread
Bolt specification is a grade 12.9 alloy socket head cap screw
Designed to be used with ferrous work piece only
