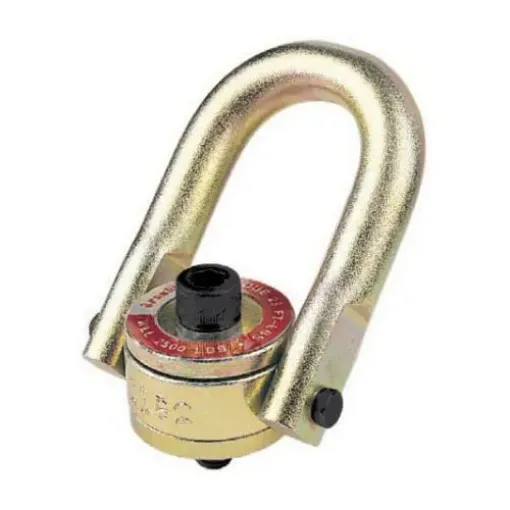

Crosby® 1016986 HR-125 Swivel Hoist Ring, 24000 lb Load, 180 deg Pivot, 360 deg Swivel, 1-3/4 in Bail, 1-1/2-6 UNC Thread

Manufacturer: Crosby Group
Crosby® Swivel Hoist Ring, Series: HR-125, 24000 lb, 180 deg Pivot Angle, 360 deg Swivel, 1-3/4 in Bail Dia, 1-1/2-6 UNC, 800 ft-lb Installation Torque, 8.48 in W
SKU: CRO 1016986
Manufacturer part number: 1016986
Availability:
Total Stock Available : 0
Price: Call for pricing
i h h



Have Questions About This Product?



  • Rated at 100% at 90 deg angle
  • 100% Individually proof tested to 2-1/2X the working load limit with certification and statistically magnetic particle inspected
  • Each product has a product identification code (PIC) for material traceability, along with the working load limit and the name Crosby® or "CG" stamped into it
  • Importantly, these hoist rings meet other critical performance requirements including fatigue life, impact properties and material traceability
  • Fatigue rated to 20000 cycles at 1-1/2X the working load limit
  • Individually packaged along with proper application instructions and warning information
  • Bolt is secured with E-clip, threads are grooved, this method allows for easy disassembly and assembly of hoist ring for thorough examination of all components
  • Bolts are individually proof tested
  • Top washer has the following features - the working load limit and recommended torque value are permanently stamped into each washer
  • Washer is color coded for easy identification, red for UNC thread
  • All threads listed are UNC
