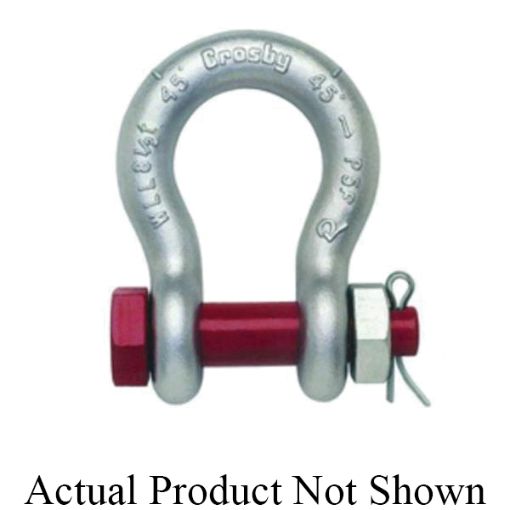

Picture of Crosby® 1018400 Anchor Shackle, 0.75 ton Load, 5/16 in, 0.38 in Dia Screw Pin, Self-Colored
Picture of Crosby® 1018400 Anchor Shackle, 0.75 ton Load, 5/16 in, 0.38 in Dia Screw Pin, Self-Colored

Crosby® 1018400 Anchor Shackle, 0.75 ton Load, 5/16 in, 0.38 in Dia Screw Pin, Self-Colored

Manufacturer: Crosby Group
Crosby® Anchor Shackle, Series: Maxtough® S-209, 0.75 ton Load, 5/16 in Size, 0.38 in Pin Diameter, Screw Pin, 1.22 in Inner Length, 0.84 in Inner Width, 0.53 in Opening, 3/4 in Eye Outer, 2.09 in Overall Length, 1.71 in Overall Width, Carbon Steel Body, Alloy Steel Pin, Self-Colored
SKU: CRO 10-18400
Manufacturer part number: 1018400
Availability:
Total Stock Available : 19
Price: Call for pricing
i h h



Have Questions About This Product?



  • Forged quenched and tempered with alloy pins
  • Working load limit and grade "6 in permanently shown on every shackle
  • Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification
  • Approved for use at -40 to 204 deg C
  • Capacities 1/3 thru 55 metric tons, grade 6
  • The tests are conducted by Crosby® and 3.1 test certification is available upon request
  • +/-0.06 in L tolerance
  • +/-0.06 in W tolerance
  • Fatigue rated
  • Load rated
Products specifications
Product type Consumable
