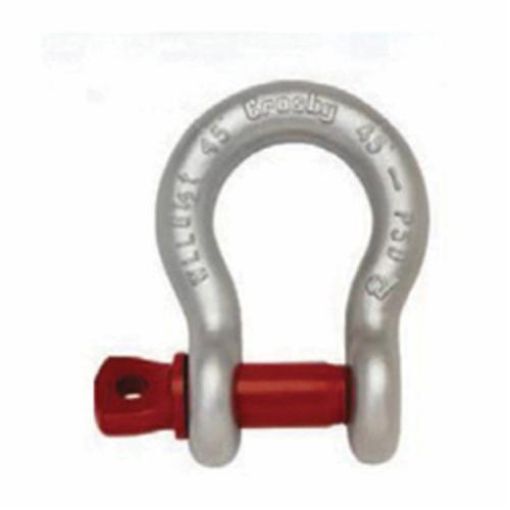

Picture of Crosby® 1018455 Anchor Shackle, 2 ton Load, 1/2 in, 0.63 in Dia Screw Pin, Hot Dipped Galvanized
Picture of Crosby® 1018455 Anchor Shackle, 2 ton Load, 1/2 in, 0.63 in Dia Screw Pin, Hot Dipped Galvanized

Crosby® 1018455 Anchor Shackle, 2 ton Load, 1/2 in, 0.63 in Dia Screw Pin, Hot Dipped Galvanized

Manufacturer: Crosby Group
Crosby® Anchor Shackle, Series: G-209, 2 ton Load, 1/2 in Size, 0.63 in Pin Diameter, Screw Pin, 1-7/8 in Inner Length, 1-5/16 in Inner Width, 0.81 in Opening, 1.19 in Eye Outer, 3.28 in Overall Length, 2.69 in Overall Width, Carbon Steel Body, Alloy Pin, Hot Dipped Galvanized
SKU: CRO 10-18455
Manufacturer part number: 1018455
Availability:
Total Stock Available : 340
Price: Call for pricing
i h h



Have Questions About This Product?



  • Working load limit and grade 6 permanently shown on every shackle
  • Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification
  • Approved for use at -40 to 400 deg F
  • 3.25 ton through 25 ton G209 anchor shackles are type approved to DNV certification notes 2.7-1- offshore containers
  • The shackles are statistical proof and impact tested to 42 J min average at -4 deg F
  • The tests are conducted by Crosby® and 3.1 test certified
  • All other 209 shackles can meet charpy requirements of 42 J average at -4 deg F upon special request
  • Look for the Red Pin® the mark of genuine Crosby® quality
Products specifications
Size 1/2
Product type Consumable
Body Material Carbon Steel
Eye Outer Size 1.19
Inner Length 1-7/8
Inner Width 1-5/16
Load Capacity 2
Opening Size 0.81
Overall Length 3.28
Overall Width 2.69
Pin Diameter 0.63
Pin Material Alloy
Pin Type Screw
Series G-209
Finish Hot Dipped Galvanized
