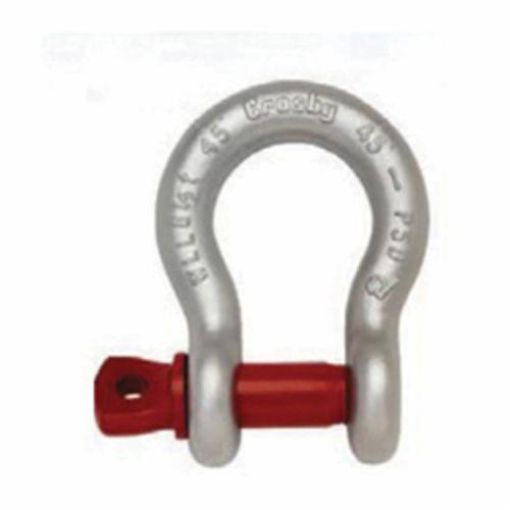

Crosby® 1018473 G-209 Anchor Shackle, 3.25 ton Load, 5/8 in, 3/4 in Dia Pin Screw Pin, Hot Dipped Galvanized

Manufacturer: Crosby Group
Crosby®, 1018473, Anchor Shackle, Series: G-209, 3.25 ton Load, 5/8 in Size, 3/4 in Pin Diameter, Screw Pin, 2-3/8 in Inner Length, 1.69 in Inner Width, 1.06 in Opening, 1-1/2 in Eye Outer, 4.19 in Overall Length, 3.34 in Overall Width, 0.69 in Overall Depth, Carbon Steel Body, Alloy Pin, Hot Dipped Galvanized
SKU: CRO 10-18473
Manufacturer part number: 1018473
Availability:
Total Stock Available : 279
Price: Call for pricing
i h h



Have Questions About This Product?



  • Working load limit and grade 6 permanently shown on every shackle
  • Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification
  • Approved for use at -40 to 400 deg F
  • 3.25 ton through 25 ton G209 anchor shackles are type approved to DNV certification notes 2.7-1- offshore containers
  • The shackles are statistical proof and impact tested to 42 J min average at -4 deg F
  • The tests are conducted by Crosby® and 3.1 test certified
  • All other 209 shackles can meet charpy requirements of 42 J average at -4 deg F upon special request
  • Look for the Red Pin® the mark of genuine Crosby® quality
  • Capacities 1/3 through 55 m ton, grade 6
  • Forged quenched and tempered, with alloy pins
  • Hot-dip galvanized or self-colored
  • Sizes 3/8 in and below are mechanically galvanized
  • Fatigue rated
  • Shackles 25t and larger are RFID equipped
Products specifications
Owner AMECO
Size 5/8
Product type Consumable
Body Material Carbon Steel
Eye Outer Size 1-1/2
Inner Length 2-3/8
Inner Width 1.69
Load Capacity 3.25
Opening Size 1.06
Overall Length 4.19
Overall Width 3.34
Pin Diameter 3/4
Pin Material Alloy
Pin Type Screw
Series G-209
Overall Depth 0.69
Finish Hot Dipped Galvanized
