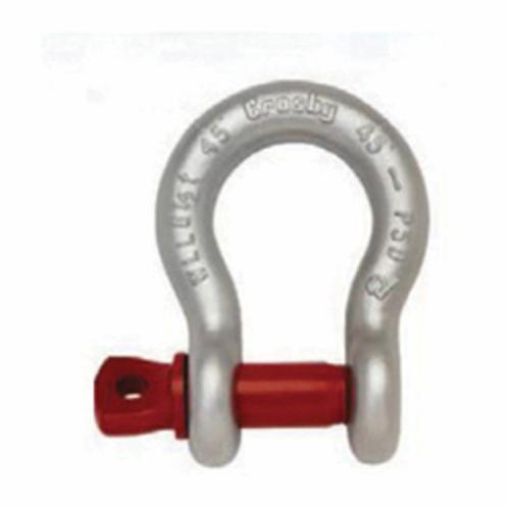

Picture of Crosby® 1018491 Anchor Shackle, 4.75 ton Load, 3/4 in, 0.88 in Dia Screw Pin, Hot Dipped Galvanized
Picture of Crosby® 1018491 Anchor Shackle, 4.75 ton Load, 3/4 in, 0.88 in Dia Screw Pin, Hot Dipped Galvanized

Crosby® 1018491 Anchor Shackle, 4.75 ton Load, 3/4 in, 0.88 in Dia Screw Pin, Hot Dipped Galvanized

Manufacturer: Crosby Group
Crosby® Anchor Shackle, Series: Maxtough® G-209, 4.75 ton Load, 3/4 in Size, 0.88 in Pin Diameter, Screw Pin, 2.81 in Inner Length, 2 in Inner Width, 1-1/4 in Opening, 1.81 in Eye Outer, 4.97 in Overall Length, 3.97 in Overall Width, Carbon Steel Body, Alloy Steel Pin, Hot Dipped Galvanized
SKU: CRO 10-18491
Manufacturer part number: 1018491
Availability:
Total Stock Available : 343
Price: Call for pricing
i h h



Have Questions About This Product?



  • Forged quenched and tempered with alloy pins
  • Working load limit and grade "6 in permanently shown on every shackle
  • Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification
  • Approved for use at -40 to 204 deg C
  • Capacities 1/3 thru 55 metric tons, grade 6
  • The tests are conducted by Crosby® and 3.1 test certification is available upon request
  • +/-0.25 in L tolerance
  • +/-0.06 in W tolerance
  • Fatigue rated
  • Load rated
  • 3.25 - 25 ton G209 anchor shackles are type approved to DNV certification Notes 2.7-1- Offshore containers
  • These shackles are statistical proof and impact tested to 42 joules min average at -20 deg C
Products specifications
Product type Consumable
Size 3/4
Body Material Carbon Steel
Eye Outer Size 1.81
Inner Length 2.81
Inner Width 2
Load Capacity 4.75
Opening Size 1-1/4
Overall Length 4.97
Overall Width 3.97
Pin Diameter 0.88
Pin Material Alloy Steel
Pin Type Screw
Series Maxtough® G-209
Finish Hot Dipped Galvanized
