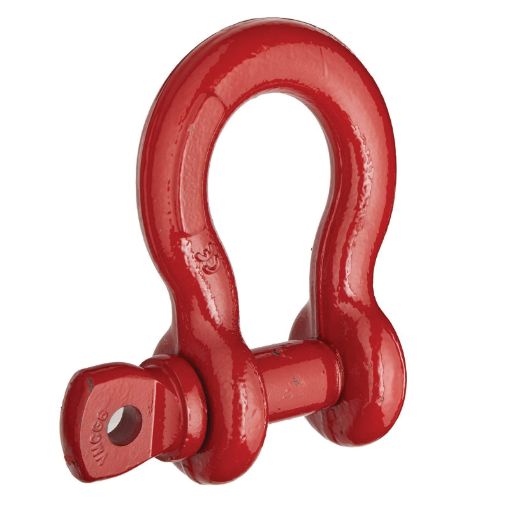

Picture of Crosby® 1018605 Anchor Shackle, 13.5 ton Load, 1-3/8 in, 1-1/2 in Dia Screw Pin, Self-Colored
Picture of Crosby® 1018605 Anchor Shackle, 13.5 ton Load, 1-3/8 in, 1-1/2 in Dia Screw Pin, Self-Colored

Crosby® 1018605 Anchor Shackle, 13.5 ton Load, 1-3/8 in, 1-1/2 in Dia Screw Pin, Self-Colored

Manufacturer: Crosby Group
Crosby® Anchor Shackle, Series: S-209, 13.5 ton Load, 1-3/8 in Size, 1-1/2 in Pin Diameter, Screw Pin, 5-1/4 in Inner Length, 3.63 in Inner Width, 2-1/4 in Opening, 3-5/16 in Eye Outer, 9.16 in Overall Length, 6.83 in Overall Width, Carbon Steel Body, Carbon Steel Pin, Self-Colored
SKU: CRO 10-18605
Manufacturer part number: 1018605
Availability:
Total Stock Available : 1
Price: Call for pricing
i h h



Have Questions About This Product?



  • Working load limit and grade 6 permanently shown on every shackle
  • Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification
  • Approved for use at -40 to 400 deg F
  • 3.25 ton through 25 ton G209 anchor shackles are type approved to DNV certification notes 2.7-1- offshore containers
  • The shackles are statistical proof and impact tested to 42 J min average at -4 deg F
  • The tests are conducted by Crosby® and 3.1 test certified
  • All other 209 shackles can meet charpy requirements of 42 J average at -4 deg F upon special request
  • Look for the Red Pin® the mark of genuine Crosby® quality
Products specifications
Product type Consumable
Size 1-3/8
Body Material Carbon Steel
Eye Outer Size 3-5/16
Inner Length 5-1/4
Inner Width 3.63
Load Capacity 13.5
Opening Size 2-1/4
Overall Length 9.16
Overall Width 6.83
Pin Diameter 1-1/2
Pin Material Carbon Steel
Pin Type Screw
Series S-209
Finish Self-Colored
