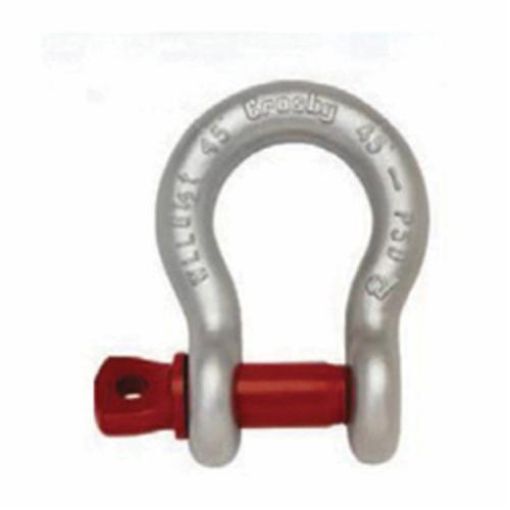

Crosby® 1018614 Anchor Shackle, 17 ton Load, 1-1/2 in, 1.63 in Dia Screw Pin, Hot Dipped Galvanized

Manufacturer: Crosby Group
Crosby® Anchor Shackle, Series: G-209, 17 ton Load, 1-1/2 in Size, 1.63 in Pin Diameter, Screw Pin, 5-3/4 in Inner Length, 3-7/8 in Inner Width, 2-3/8 in Opening, 3.63 in Eye Outer, 10 in Overall Length, 7.33 in Overall Width, Carbon Steel Body, Alloy Pin, Hot Dipped Galvanized
SKU: CRO 10-18614
Manufacturer part number: 1018614
Availability:
Total Stock Available : 2
Price: Call for pricing
i h h



Have Questions About This Product?



  • Working load limit and grade 6 permanently shown on every shackle
  • Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification
  • Approved for use at -40 to 400 deg F
  • 3.25 ton through 25 ton G209 anchor shackles are type approved to DNV certification notes 2.7-1- offshore containers
  • The shackles are statistical proof and impact tested to 42 J min average at -4 deg F
  • The tests are conducted by Crosby® and 3.1 test certified
  • All other 209 shackles can meet charpy requirements of 42 J average at -4 deg F upon special request
  • Look for the Red Pin® the mark of genuine Crosby® quality
Products specifications
Product type Consumable
