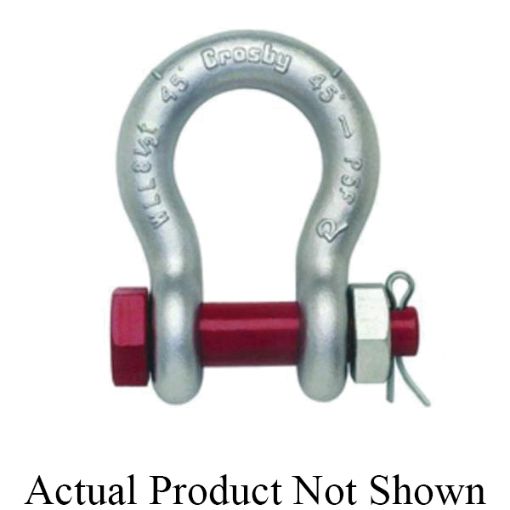

Crosby® 1018623 Anchor Shackle, 17 ton Load, 1-1/2 in, 1.63 in Dia Screw Pin, Self-Colored

Manufacturer: Crosby Group
Crosby® Anchor Shackle, Series: Maxtough® S-209, 17 ton Load, 1-1/2 in Size, 1.63 in Pin Diameter, Screw Pin, 5-3/4 in Inner Length, 3.88 in Inner Width, 2.38 in Opening, 3.63 in Eye Outer, 10 in Overall Length, 7.33 in Overall Width, Carbon Steel Body, Alloy Steel Pin, Self-Colored
SKU: CRO 10-18623
Manufacturer part number: 1018623
Availability:
Total Stock Available : 10
Price: Call for pricing
i h h



Have Questions About This Product?



  • Forged quenched and tempered with alloy pins
  • Working load limit and grade "6 in permanently shown on every shackle
  • Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification
  • Approved for use at -40 to 204 deg C
  • Capacities 1/3 thru 55 metric tons, grade 6
  • The tests are conducted by Crosby® and 3.1 test certification is available upon request
  • +/-0.25 in L tolerance
  • +/-0.13 in W tolerance
  • Fatigue rated
  • Load rated
Products specifications
Size 1-1/2
Product type Consumable
Body Material Carbon Steel
Eye Outer Size 3.63
Inner Length 5-3/4
Inner Width 3.88
Load Capacity 17
Opening Size 2.38
Overall Length 10
Overall Width 7.33
Pin Diameter 1.63
Pin Material Alloy Steel
Pin Type Screw
Series Maxtough® S-209
Finish Self-Colored
