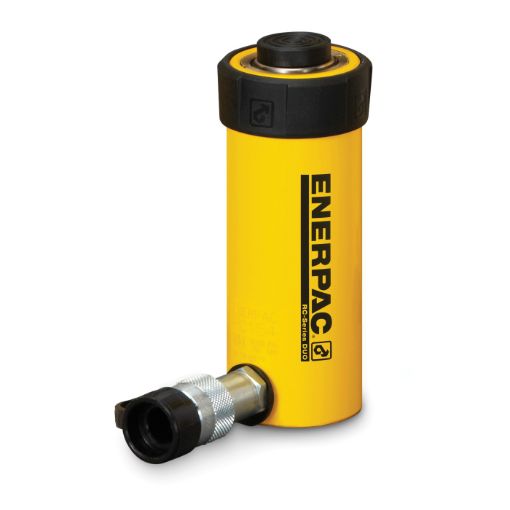

Enerpac® RC-156 DUO General Purpose Single Acting Hydraulic Cylinder, 15 ton Capacity, 2 in Dia Bore, 6 in L Stroke, 10.69 in H Retract, 1.63 in Dia Rod, 700 bar

Manufacturer: Enerpac
Enerpac® Hydraulic Cylinder, DUO General Purpose Single Acting, Series: RC, 15 ton, 2 in Dia Bore, 6 in Stroke, 10.69 in H Retract, Base Mount, 1.63 in Rod Dia, 700 bar, Alloy Steel Housing, Baked Enamel, 2-3/4 in OD
SKU: ENE RC-156
Manufacturer part number: RC-156
Availability:
Total Stock Available : 3
Price: Call for pricing
i h h



Have Questions About This Product?



  • Enerpac® RC series single acting hydraulic cylinders set the industry standard for general purpose cylinders
  • Unique GR2 bearing design, reduces wear, extending life
  • Collar threads, plunger threads and base mounting holes enable easy fixturing
  • Designed for use in all positions
  • High strength alloy steel for durability
  • Redesigned cylinder thread protector for ease of use
  • Heavy duty, pretensioned spring improves retraction speed
  • Baked enamel finish for increased corrosion resistance
  • Plunger wiper reduces contamination, extending cylinder life
Products specifications
Product type Consumable
Bore Size 2 in Dia
Capacity 15
Dimensions 2-3/4 in OD
Housing Material Alloy Steel
Mounting Type Base
Pressure Rating 700
Retract 10.69 in H
Rod Diameter 1.63
Series RC
Stroke Length 6
Type DUO General Purpose Single Acting
Finish Baked Enamel
