Enerpac® RC-256 General Purpose Industry Standard Single Acting Hydraulic Cylinder, 25 ton Capacity, 6-1/4 in L Stroke, 10000 psi

Manufacturer: Enerpac
Enerpac® Hydraulic Cylinder, General Purpose Industry Standard Single Acting, Series: RC, 25 ton, 6-1/4 in Stroke, 10000 psi, Steel Housing, Baked Enamel
SKU: ENE RC-256
Manufacturer part number: RC-256
Availability:
Total Stock Available : 3
Price: Call for pricing
i h h



Have Questions About This Product?

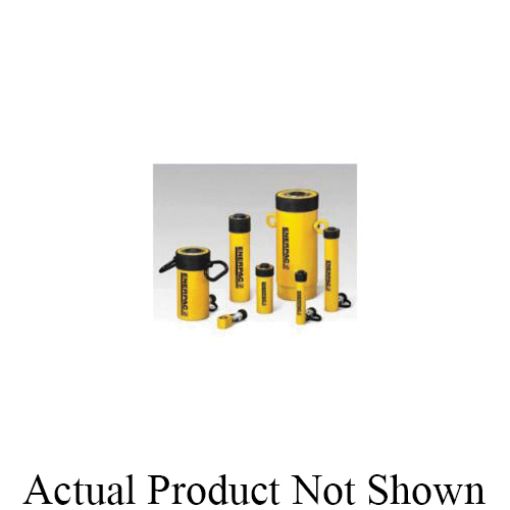

Enerpac® hydraulic cylinders are available in hundreds of different configurations. Whatever the industrial application lifting, pushing, pulling, bending, holding, whatever the force capacity, stroke length, or size restrictions, single- or double-acting, solid or hollow plunger, you can be sure that Enerpac® has the cylinder to suit your high force application.
  • RC series single acting hydraulic cylinders set the industry standard for general purpose cylinders
  • Unique GR2 bearing design, reduces wear and extending life
  • Collar threads, plunger threads and base mounting holes enable easy fixturing (on most models)
  • Designed for use in all positions
  • High strength alloy steel for durability
  • Redesigned cylinder thread protector for ease of use
  • Heavy duty, pretension spring improves retraction speed
  • Baked enamel finish for increased corrosion resistance
  • Plunger wiper reduces contamination, extending cylinder life
  • All RC cylinders are equipped with hardened removable grooved saddles
  • The exclusive GR2 is a unique bearing design on RC series DUO cylinders which absorbs eccentric load stresses to protect your cylinder against abrasion, over-extending or plunger blow-outs and jamming or top-end mushrooming
  • 2.56 in cylindrical bore diameter
  • 1 in base to advance port
  • 2 in saddle diameter
  • 0.41 in saddle protruding from plunger
  • 1-1/2-16 UN plunger internal thread
  • 1 in plunger thread length
  • 2.31 in bolt circle
  • 1/2-13 UN thread
  • 3/4 in thread depth
Products specifications
Product type Consumable
Capacity 25
Housing Material Steel
Pressure Rating 10000
Series RC
Stroke Length 6-1/4
Type General Purpose Industry Standard Single Acting
Finish Baked Enamel
