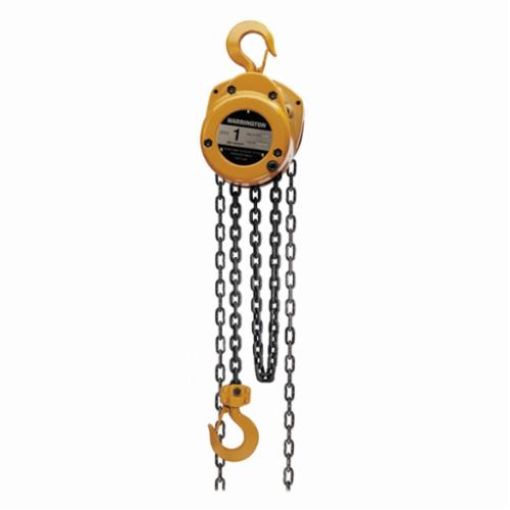

HARRINGTON CF020-20 CF Series Portable Hand Chain Hoist, 2 ton Load, 20 ft H Lifting, 20.1 in Min Between Hooks, 1.4 in Hook Opening, 80 lb Rated

Manufacturer: Harrington Hoists
HARRINGTON Hand Chain Hoist, Portable, Series: CF Series, 2 ton, 20 ft Lifting Height, 20.1 in Minimum Between Hooks, 1.4 in Hook Opening, 80 lb Pull to Lift, Weston Brake, 20.1 in L x 8 in W x 5.8 in D
SKU: HAR CF020-20
Manufacturer part number: CF020-20
Availability:
Total Stock Available : 13
Price: Call for pricing
i h h



Have Questions About This Product?



Harrington's CF hand chain hoists were designed for portability and durability. These hoists are the economical and practical choice for efficient, trouble-free service. The CF model is a long-lasting construction grade hoist that offers the best value in a hand chain hoist.
  • Capacities 1/2 ton through 5 ton
  • Rugged die-cast aluminum body provides exceptional strength
  • Pre-lubricated sealed ball bearings for long life and low maintenance
  • Weston-style load brakes for positive braking action
  • Designed with fewer parts to simplify maintenance
  • Handle tough demands with high-strength, heat-treated main pinion shaft and load gear
  • Positive braking action with Weston-style load brake incorporating two moisture-resistant brake pads with four braking surfaces
  • Smooth running, pre-lubricated ball bearings, and precision machined drive train components
  • Simplify maintenance with fewer parts and an easy-to-work-on design
  • Grade 100 heat-treated manganese alloy load chain resists abrasion and wear while minimizing chain weight
  • Forged and heat-treated alloy steel hooks are designed to open slowly and not fracture under excessive loads
Products specifications
Product type Consumable
Brake Type Weston
Dimensions 20.1 in L x 8 in W x 5.8 in D
Hook Opening 1.4
Lifting Height 20
Load Capacity 2 ton
Minimum Between Hooks 20.1
Pull to Lift Rated Load 80
Series CF Series
Type Portable
