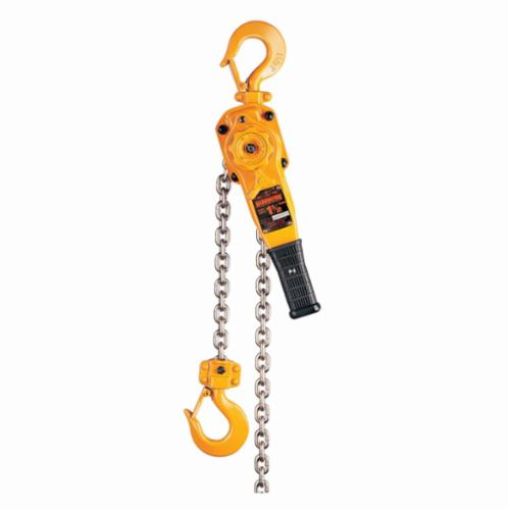

HARRINGTON LB030-20 LB Series Compact Lever Hoist, 3 ton Load, 20 ft H Lifting, 69 lb Rated, 1-1/2 in Hook

Manufacturer: Harrington Hoists
HARRINGTON Lever Hoist, Compact, Series: LB Series, 3 ton, 20 ft Lifting Height, 15.6 in Minimum Between Hooks, 1-1/2 in Hook Opening, 69 lb Pull to Lift, 16.3 in Lever Length, Steel Chain, 1 Reeving, Weston Brake, 15.6 in L x 6.3 in W x 7.5 in D
SKU: HAR LB030-20
Manufacturer part number: LB030-20
Availability:
Total Stock Available : 7
Price: Call for pricing
i h h



Have Questions About This Product?



Harrington's LB lever hoists combine easy operation with a compact, low headroom design that easily handles real-world demands. Rated the number 1 selling lever hoist in the U.S., these hoists can be used horizontally, vertically, inverted or at any other load angle and have the strength to get the job done.
  • Capacities 3/4 ton through 9 ton
  • Compact design makes it a perfect fit for use in tight quarters
  • Steel body is more durable yet lighter weight than die-cast aluminum models
  • Revolutionary freewheeling offers one handed operation
  • 383 deg handle rotation and pivot and swivel top hook for easy rigging
  • Single load chain through 3 tons
  • Rugged, all-steel construction that actually weighs less than comparable aluminum models
  • Positive braking action with Weston-style load brake incorporating two moisture-resistant brake pads with four braking surfaces
  • Protection against dirt and moisture with a totally enclosed brake mechanism
  • Patented spring-loaded freewheel mechanism permits easy adjustment of the load chain and safeguards against accidental freewheeling under load
  • Standard rubber grip for non-slip operation
  • Grade 100 heat-treated load chain is nickel plated for corrosion resistance
  • Forged and heat-treated alloy steel hooks open slowly without fracturing under excessive loads
