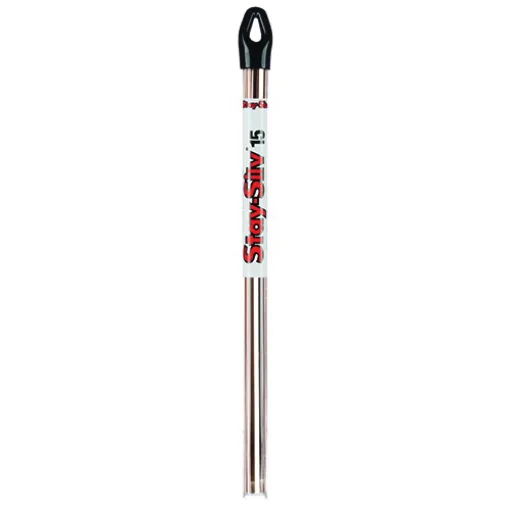

Harris® 15620F1 15 Series Brazing Filler, 1/8 in Dia x 20 in L, 28 lb Container Stick Tube Container

Manufacturer: Harris Products Group
Harris®, 15620F1, Brazing Filler, Series: 15 Series, 1/8 in Diameter, 20 in Length, 28 lb Container, Stick Tube Container, Chemical Composition: Silver, Phosphorus, Tin, Copper, 1300 to 1500 deg F Brazing, Applicable Materials: Brazing Low Nickel, (10% Maximum), Copper/Nickel Base Metal
SKU: JWH 15620F1
Manufacturer part number: 15620F1
Availability:
Total Stock Available : 7
Price: Call for pricing
i h h



Have Questions About This Product?



For many years the standard of the industry, the 15% silver alloy has proven its value. This filler metal is excellent for situations in which close fit-up does not exist, and where thermal expansion and service vibration are involved.
  • Stay silv 15 brazing filler metal is a frequent choice for brazing copper, especially in brazing air conditioning and refrigeration connections
  • 17.4 electrical resistivity
  • 9.9 electrical conductivity
  • 1190 deg F solidus melting temperature
  • 1480 deg F liquids melting temperature
  • The higher the fluidity rating, the faster the alloy flows within the melting range
  • Stay silv 15 also meets federal specification QQ-B-654A, grade III
  • 3 fluidity rating
  • 0.002 in or 0.006 in recommended joint clearance
  • 0.05 in thickness
