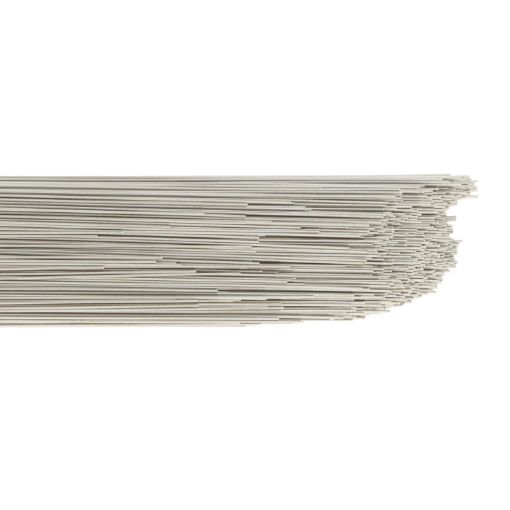

Harris® 309LT60 309L TIG GTAW Alloy, 1/8 in Dia x 36 in L, 10 lb Container

Manufacturer: Harris Products Group
Harris®, 309LT60, Alloy, GTAW, Series: 309L TIG, 1/8 in Diameter, 36 in Length, 10 lb Container, 87000 psi Tensile Strength, Chemical Composition: 0.03 % Carbon, 23.0 to 25.0 % Chromium, 12.0 to 14.0 % Nickel, 1.0 to 2.5 % Manganese, 0.75 % Copper, 0.30 to 0.65 % Silicon, 0.03 % Phosphorus, 0.03 % Sulfur, 0.75 % Molybdenum, Iron, 85 HRB, 160 HB Hardness, Applicable Materials: Alloy
SKU: JWH 309LT60
Manufacturer part number: 309LT60
Availability:
Total Stock Available : 0
Price: Call for pricing
i h h



Have Questions About This Product?



309L stainless steel GTAW (TIG) welding alloy has similar usage as 309, but the 0.03% maximum carbon content, reduces the possibility of carbide precipitation that can cause weld corrosion, to increase resistance to intergranular corrosion. Used for welding similar alloys in wrought or cast form. Occasionally used for welding 18-8 base metals when severe corrosion conditions exist, and, at times, welding dissimilar steels. Conforms to AWS A5.9. Packaged for portable welding machines. Conveniently packaged for point-of-purchase display.
  • Stainless steel 309L TIG welding rod welds 304 and similar base metals in wrought or cast form where severe conditions may exist
  • Sometimes welds dissimilar steels
  • Lower carbon content (.03% max) resists carbide precipitation that can cause weld corrosion
  • 87,000 psi tensile strength (as welded)
  • 58,000 psi yield strength (as welded)
  • 40% elongation (as welded); 60% reduction of area (as welded)
  • 85 HRB Rockwell B Hardness (as welded)
  • 160 HB Brinell Hardness (as welded)
  • 105 ft/lb at room temperature Charpy V (as welded)
