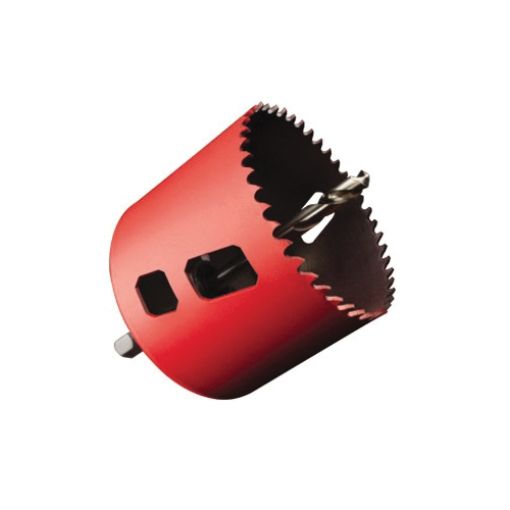

M.K. Morse® 177481 MHS Advanced Hole Saw, 3 in Dia, 1-15/16 in D Cutting, M42 HSS-Co 8 Cutting Edge, 5/8-18 Arbor

Manufacturer: The M.K. Morse Company
M.K. Morse® Hole Saw, Advanced, Series: MHS, 3 in Diameter, 1-15/16 in Cutting Depth, 5/6 TPI, 5/8-18 Arbor, 1/4 in Dia x 3-3/32 in L Drill, M42 HSS-Co 8 Cutting Edge, Bi-Metal Body, Toothed Cutting Edge, 55 to 170 rpm Speed, 1/2 in Chuck, Hex Shank, 7/16 in Shank, Use Arbor: MA45PS, Red, Applicable Materials: Machinable Metal, Nail Embedded Wood, Plastic, Stainless Steel Alloy and Wood
SKU: MKM 177481
Manufacturer part number: 177481
Availability:
Total Stock Available : 16
Price: Call for pricing
i h h



Have Questions About This Product?



The all new advanced bi-metal hole saw by M.K. Morse®. Our latest sawing innovation replaces all current Morse bi-metal hole saw solutions into one, simple optimized powerhouse. Arbor required.
  • Patent pending tooth set design - optimized to remove material faster
  • Premium M42 high speed steel cutting edge, 8% cobalt - over 2X the life of our AV model
  • New Cap - Reduces run out and vibration
  • Heavy duty 0.05 in side wall - for greater stability
  • New Side Slot - Increased leverage for faster, easier slug removal
  • New exterior red coating - reduces side wall friction for efficient cutting
Products specifications
Color Red
Product type Consumable
Arbor Size 5/8-18
Body Material Bi-Metal
Chuck Size 1/2
Cutting Depth 1-15/16
Cutting Edge Material M42 HSS-Co 8
Cutting Edge Style Toothed
Diameter 3
Drill Size 1/4 in Dia x 3-3/32 in L
Series MHS
Shank Size 7/16
Shank Type Hex
Speed 55 to 170
TPI or Pitch 5/6
Type Advanced
Use Arbor MA45PS
Applicable Materials Machinable Metal, Nail Embedded Wood, Plastic, Stainless Steel Alloy and Wood
