RIDGID 26092 1224 Kit Threading Machine Kit, 1/2 to 4 in Pipe, 18-1/2 in L x 72-1/2 in W, 1/4 to 2 in Bolt, 120 VAC, 1.5 hp, 36/12 rpm Speed

Manufacturer: Emerson Electric
RIDGID Threading Machine Kit, Kit, 1/2 to 4 in, 36/12 rpm, 1.5 hp, 120 VAC, 15 A, 1/4 to 2 in Bolt, 18-1/2 in Overall Length, 72-1/2 in Overall Width, Reversing: Yes, Polyethylene Housing, Heavy Duty Rotary Forward/Off/Reverse/Integral Foot Switch Control
Availability:
Total Stock Available : 10
SKU: R.PT1224
Manufacturer part number: 26092
*
*
Rental price: $0.00 per 0 day(s)
Price: Call for pricing
Asset Information
+ -
EA Call for price (1 / EA)
DAY Call for price (1 / EA)
MO Call for price (1 / EA)
WK Call for price (1 / EA)



Have Questions About This Product?

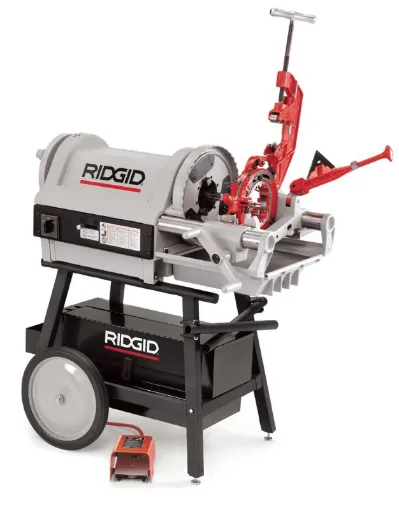

The RIDGID model 1224 is the industry standard 4 in threading machine. Thousands of satisfied customers around the world give testimony of its dependability.
  • The Model: 1224 threads a wide range of pipe including black, galvanized and plastic coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C
  • An induction motor helps minimize noise
  • A special capacitor-start/capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced
  • 1/4 to 2 in universal die head, 2-1/2 to 4 in receding die head allows cutting of tapered or straight NPT/NPSM or BSPT connection/BSPP threads
  • Constant and proper lubrication of dies and workpiece with through head oiling
  • Two-speed gear box with a 3:1 ratio
  • Hammer-type chuck with replaceable rocker action jaw inserts
  • Cam action rear centering device
  • Self-priming, gerotor type, automatic-reversing, constant flow oiling pump
  • Through die head oiling
  • Versatility: threads black, galvanized and plastic coated pipe, stainless steel, IMC, heavy-wall conduit, and rod up to RC 30
  • Quiet operation: an induction motor insures sound levels well within the limits set by OSHA
  • Low voltage operation: special start/run capacitors allow operation in less than ideal conditions
Products specifications
Bare Tool/Kit Kit
Amperage Rating 15 A
Bolt Size 1/4 to 2 in
Control Type Heavy Duty Rotary Forward/Off/Reverse/Integral Foot Switch
Horsepower 1.5 hp
Housing Material Polyethylene
Overall Length 18-1/2 in
Overall Width 72-1/2 in
Pipe Capacity 1/2 to 4 in
Reversing Yes
Speed 36/12 rpm
Voltage Rating 120 VAC
