*Image may not represent exact item

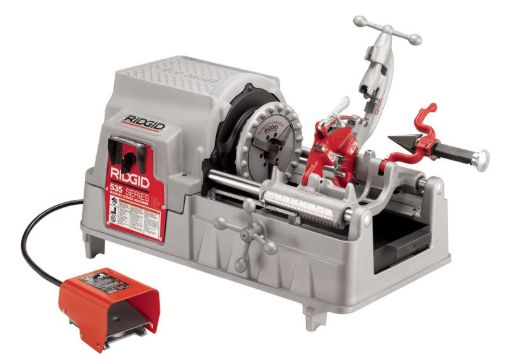

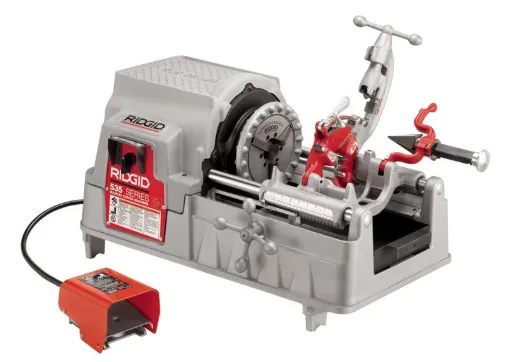

RIDGID 93287 535 Kit Threading Machine Kit, 1/2 to 2 in Pipe, 38-1/8 in L x 20-1/2 in W, 1/4 to 2 in Bolt, 115 VAC, 1/2 hp, 36 rpm Speed

Manufacturer: Emerson Electric
RIDGID Threading Machine Kit, Kit, 1/2 to 2 in, 36 rpm, 1/2 hp, 115 VAC, 15 A, 1/4 to 2 in Bolt, 38-1/8 in Overall Length, 20-1/2 in Overall Width, Reversing: Yes, Forward/Off/Reverse/Integral Foot Switch Control
Availability:
Total Stock Available : 4
SKU: R.PT535
Manufacturer part number: 93287
*
*
Rental price: $0.00 per 0 day(s)
Price: Call for pricing
Asset Information
+ -
EA Call for price (1 / EA)
DAY Call for price (1 / EA)
MO Call for price (1 / EA)
WK Call for price (1 / EA)



Have Questions About This Product?



The model 535 maintains the ruggedness of the industry workhorse while adding the features that makes the threading operation more productive. A large chip tray and oil reservoir makes the 535 ideal for longer uninterrupted threading. The 535 is designed around maximum uptime with the upgrades that matter most to the pipe working professional. Users also benefit from the part commonality between the 535, the 535A automatic and other RIDGID equipment.
  • Large 1.75 gal oil tray
  • Large chip tray
  • Generous top cover for keeping tools and fittings handy
  • High clearance carriage makes threading easier
  • Speed chuck with rocker action jaws centers and grips work piece instantly
  • Can be used with geared threader models 141 and 161
  • Uses Model: 816/817 semi-automatic, Model: 815A self-opening or Model: 811A quick-opening die heads
  • Length gauge for quick, accurate cut-off
  • Steel Cabinet Features: 17 ga steel walls and welded construction, two internal and one external storage shelves, Oversized bi-fold door with steel clasp, Cut-outs for power cord and foot switch storage and two drain plugs for easy cleaning
  • Speed chuck with three replaceable rocker action jaw inserts
  • Self-centering full floating cutters
  • Cam action turns with chuck rear centering device
  • Self-priming gerotor oil pump
Products specifications
Product type Asset
Bare Tool/Kit Kit
Amperage Rating 15 A
Bolt Size 1/4 to 2 in
Control Type Forward/Off/Reverse/Integral Foot Switch
Horsepower 1/2 hp
Overall Length 38-1/8 in
Overall Width 20-1/2 in
Pipe Capacity 1/2 to 2 in
Reversing Yes
Speed 36 rpm
Voltage Rating 115 V AC
